ECU MODULES REPAIR HELPER

NOTE : after purchase you will get download link dirctly via your email

Title : ECU MODULES REPAIR HELPER
Language : english

ECU Repair Helper E-Book, which contains the description and location of the component for many ECUs as well pinout for this component , common fault that you can encounter and how to fix it, and immo location

the content

Introduction
Multimeters
Instructions and Basics
Cautions when using a Multimeter
Table with symbols and quantities of electricity:
Introduction to electronic injection
Main components
NTC
Diode
Voltage regulator
Electrolytic capacitor Drive
Transistor
Eprom - ROM memory
RAM memory
PAL decoder
EEprom - 95160
Processor
Crystal or Clock
Common defects (cause and effect)
Cause
It is made
Solution
Electrical Resistance
Resistor Test
Resistance calculation table for a resistor
SMD Resistor
Electronic injection modules: Features, defects
most common and repair tips
Magneti Marelli 4SF - Fiat
Magneti Marelli 4AFB - Fiat
Magneti Marelli 49FB - Fiat    Magneti Marelli 1G7 - Fiat
Magneti Marelli G7 - Fiat

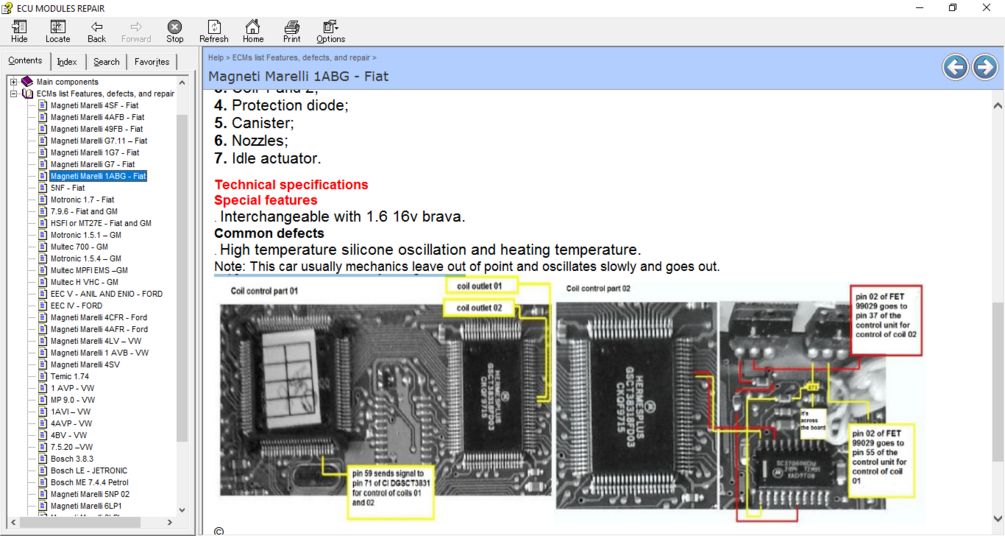

Magneti Marelli 1ABG - Fiat
5NF - Fiat
Motronic 1.7 - Fiat
7.9.6 - Fiat and GM
HSFI or MT27E - Fiat and GM
Motronic 1.5.1 - GM
Multec 700 - GM
Motronic 1.5.4 - GM
Multec MPFI EMS –GM

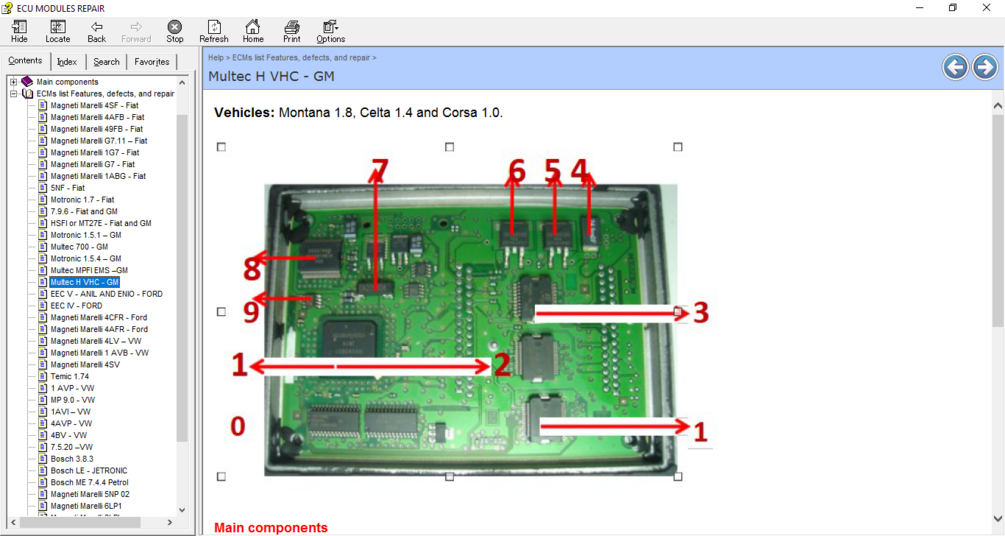

Multec H VHC - GM
EEC V - ANIL AND ENIO - FORD
EEC IV - FORD
Magneti Marelli G7.11 - Fiat    Magneti Marelli 4CFR -Ford
Magneti Marelli 4AFR - Ford
Magneti Marelli 4LV - VW
Magneti Marelli 1 AVB - VW
Magneti Marelli 4SV
Temic 1.74
1 AVP - VW
MP 9.0 - VW
1AVI - VW

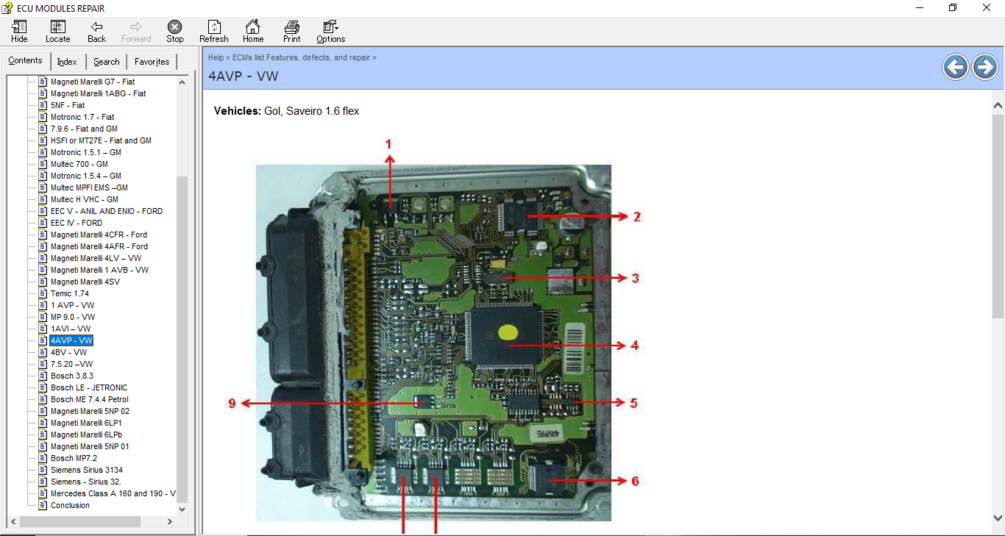

4AVP - VW
4BV - VW
7.5.20 –VW
Bosch 3.8.3    Bosch LE - JETRONIC
Bosch ME 7.4.4 Petrol
Magneti Marelli 5NP 02
Magneti Marelli 6LP1
Magneti Marelli 6LPb
Magneti Marelli 5NP 01
Bosch MP7.2
Siemens Sirius 3134

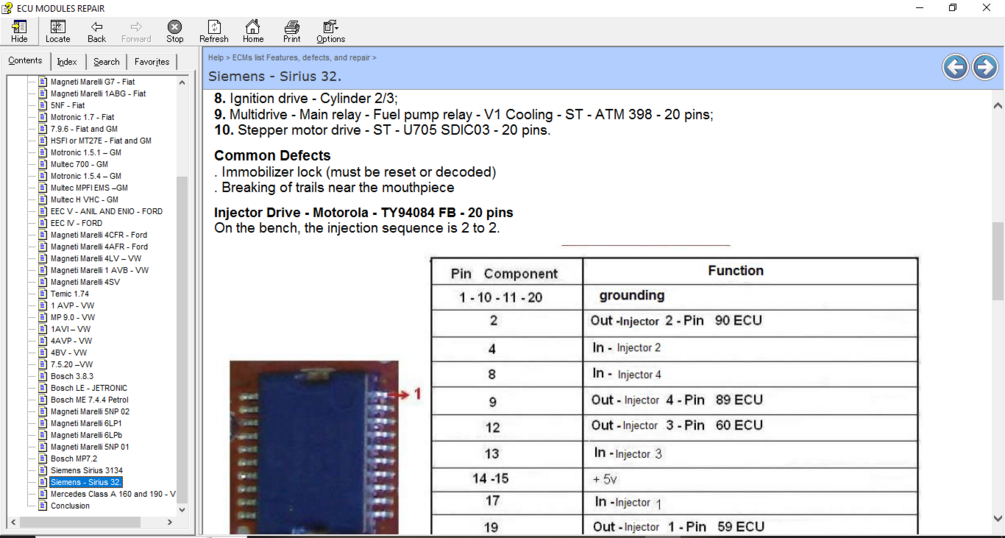

Siemens - Sirius 32.

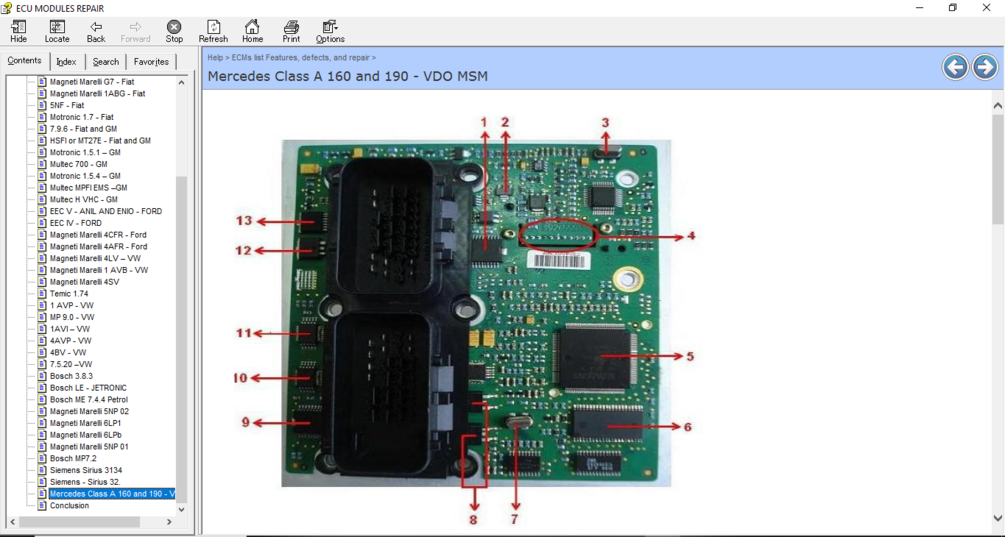

Mercedes Class A 160 and 190 - VDO MSM

You will get a CHM (52MB) file
